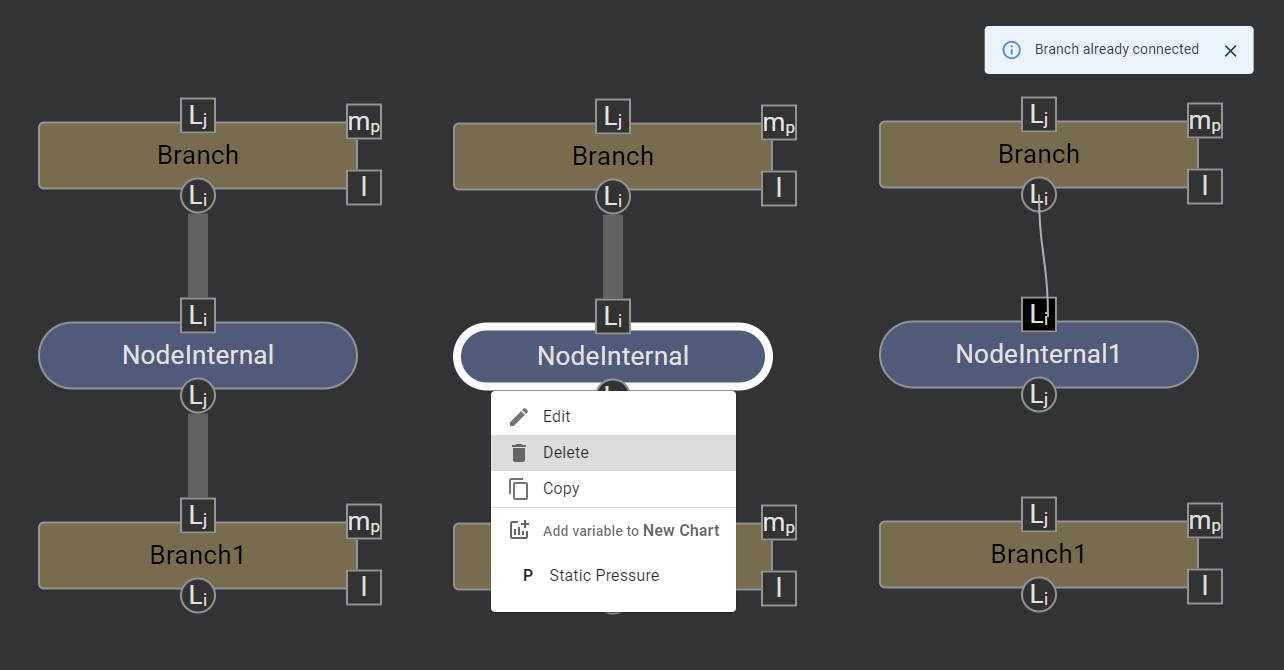

Reproduction steps:
- Add BranchA, BranchB, NodeC, NodeD
- Connect BranchA → NodeC → BranchB
- Delete NodeC
- Attempt to connect BranchA → NodeD → BranchB
The final step will fail, as the branch internally didn’t clear the previous connection
Additionally, this may cause inadvertent connections to be created, if a new NodeInternal happens to be assigned with the old one’s name. This will happen if after the Reproduction steps, if a new “NodeInternal” is added.
Gas branch/nodes are also affected the same way.
Manually clearing the “node_i”, “node_j” seems to free up the branches for new connections, though a more robust solution, which internally undos every node’s connections before deletions has a better chance of avoiding similar issues in the future.
"model": {
"nodes": [
{
"name": "NodeInternal1",
"category": 1,
"type": "NodeInternal",
"dimType": null,
"dimA": null,
"dimB": null,
"length": null,
"volume": null
}
],
"branches": [
{
"name": "Branch",
"category": 2,
"type": "Branch",
"dimType": null,
"dimA": null,
"dimB": null,
"length": null,
"volume": null,
"node_i": null,
"node_j": "NodeInternal", #### This node does not exist
"roughness": null,
"fittings": [],
"n": null
},
{
"name": "Branch1",
"category": 2,
"type": "Branch",
"dimType": null,
"dimA": null,
"dimB": null,
"length": null,
"volume": null,
"node_i": "NodeInternal", #### This node does not exist
"node_j": null,
"roughness": null,
"fittings": [],
"n": null
}
],
"machineries": [],
"transmissions": [],
"solids": [],
"control_parameters": []
},
