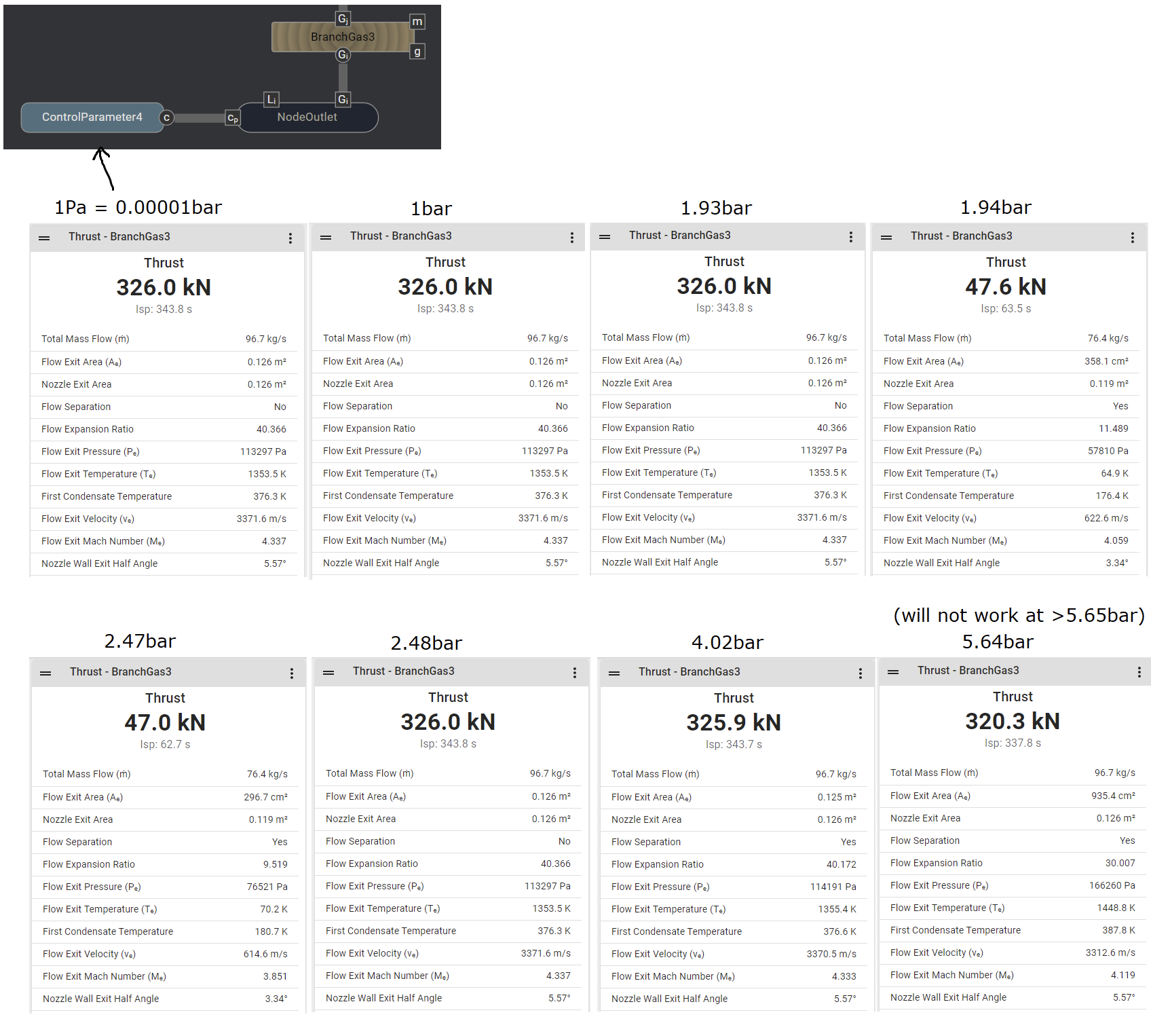

Hi, I’ve noticed that there’s seemingly no difference between running an engine at 1 bar or 0 bar in a couple of engines, with awkward arbitrary discontinuities at different pressure levels:
This is an extreme example, with ~585bar of chamber pressure, but at 40:1 expansion ratio, and ~1bar flow exit pressure, I’d expect the Isp to drop by at least 20-25s at 1bar. I’ll append the model in question at the end of this post.
In general, engines seem to vastly overperform at sea level. The built-in template of the Vulcain does:
- Vacuum: 963.3kN, 428.5s
- Sea level: 942.7kN, 419.4s
Where I’d expect this type of engine to hit <340s at sea level.
{
"name": "RP1_gasgen",
"timestamp": 1766920088923,
"selected": [
{
"name": "NodeInlet1",
"category": 1,
"type": "NodeInlet",
"fluid": "RP1"
}
],
"selectedLinks": [],
"dragging": null,
"model": {
"nodes": [
{
"name": "NodeInlet",
"category": 1,
"type": "NodeInlet",
"fluid": "LOX"
},
{
"name": "NodeGasInlet",
"category": 1,
"type": "NodeGasInlet",
"fluidGas": "LOX_LH2"
},
{
"name": "NodeOutlet1",
"category": 1,
"type": "NodeOutlet"
},
{
"name": "NodeGasInternal",
"category": 1,
"type": "NodeGasInternal",
"dimType": "Rect",
"dimA": 0.01,
"dimB": 0.01,
"length": 0.01,
"volume": 0.0001
},
{
"name": "LOXp",
"category": 1,
"type": "NodeInternal",
"dimType": "Circle",
"dimA": 0.02,
"dimB": null,
"length": 0.1,
"volume": 0.00012566370614359174
},
{
"name": "NodeInlet1",
"category": 1,
"type": "NodeInlet",
"fluid": "RP1"
},
{
"name": "RP1p",
"category": 1,
"type": "NodeInternal",
"dimType": "Circle",
"dimA": 0.1,
"dimB": null,
"length": 0.1,
"volume": 0.0031415926535897937
},
{
"name": "NodeGasGenerator",
"category": 1,
"type": "NodeGasGenerator",
"dimType": "Circle",
"dimA": 0.05,
"dimB": null,
"length": 0.1,
"volume": 0.0007853981633974484,
"fluidGas": "LOX_RP1"
},
{
"name": "NodeOutlet",
"category": 1,
"type": "NodeOutlet"
},
{
"name": "NodeGasInternal1",
"category": 1,
"type": "NodeGasInternal",
"dimType": "Circle",
"dimA": 0.05,
"dimB": null,
"length": 0.01,
"volume": 0.00007853981633974484
},
{
"name": "NodeGasInternal2",
"category": 1,
"type": "NodeGasInternal",
"dimType": "Circle",
"dimA": 0.05,
"dimB": null,
"length": 0.01,
"volume": 0.00007853981633974484
},
{
"name": "NodeInternal",
"category": 1,
"type": "NodeInternal",
"dimType": "Circle",
"dimA": 0.01,
"dimB": null,
"length": 0.05,
"volume": 0.000015707963267948967
},
{
"name": "NodeInternal1",
"category": 1,
"type": "NodeInternal",
"dimType": "Circle",
"dimA": 0.015,
"dimB": null,
"length": 0.05,
"volume": 0.00003534291735288517
}
],
"branches": [
{
"name": "Branch",
"category": 2,
"type": "Branch",
"dimType": "Circle",
"dimA": 0.015,
"dimB": null,
"length": 0.5,
"node_i": "NodeInternal1",
"node_j": "LOXp",
"n": 1,
"roughness": 0.00000356,
"volume": 0.0003534291735288517
},
{
"name": "BranchGas",
"category": 2,
"type": "BranchGas",
"dimType": "Rect",
"dimA": 0.02,
"dimB": 0.007,
"length": 0.01,
"node_i": "NodeGasInternal",
"node_j": "NodeOutlet1",
"n": 34,
"roughness": 0.00000356
},
{
"name": "BranchGas1",
"category": 2,
"type": "BranchGas",
"dimType": "Rect",
"dimA": 0.02,
"dimB": 0.003,
"length": 0.03,
"node_i": "NodeGasInlet",
"node_j": "NodeGasInternal",
"n": 34,
"roughness": 0.00000356
},
{
"name": "LOX Injector",
"category": 2,
"type": "Branch",
"dimType": "Circle",
"dimA": 0.0087,
"dimB": null,
"length": 0.1,
"volume": 0.00002377871479502114,
"node_i": "LOXp",
"node_j": "NodeGasGenerator",
"roughness": 0.0000015,
"fittings": [
"Elbow180"
],
"n": 1
},
{
"name": "Branch2",
"category": 2,
"type": "Branch",
"dimType": "Circle",
"dimA": 0.01,
"dimB": null,
"length": 0.5,
"volume": 0.00015707963267948965,
"node_i": "NodeInternal",
"node_j": "RP1p",
"roughness": 0.00000356,
"fittings": [],
"n": 1
},
{
"name": "RP1 Injector",
"category": 2,
"type": "Branch",
"dimType": "Circle",
"dimA": 0.00362,
"dimB": null,
"length": 0.1,
"volume": 0.000004116868676970208,
"node_i": "RP1p",
"node_j": "NodeGasGenerator",
"roughness": 0.0000015,
"fittings": [],
"n": 1
},
{
"name": "Chamber",
"category": 2,
"type": "BranchGas",
"dimType": "Circle",
"dimA": 0.05,
"dimB": null,
"length": 0.1,
"volume": 0.0007853981633974484,
"node_i": "NodeGasGenerator",
"node_j": "NodeGasInternal1",
"roughness": 0.0000015,
"fittings": [],
"n": 1
},
{
"name": "Throat",
"category": 2,
"type": "BranchGas",
"dimType": "Circle",
"dimA": 0.0315,
"dimB": null,
"length": 0.01,
"volume": 0.00003117245310524472,
"node_i": "NodeGasInternal1",
"node_j": "NodeGasInternal2",
"roughness": 0.0000015,
"fittings": [],
"n": 1
},
{
"name": "BranchGas3",
"category": 2,
"type": "BranchGas",
"dimType": "Circle",
"dimA": 0.2,
"dimB": null,
"length": 0.5,
"volume": 0.06283185307179587,
"node_i": "NodeGasInternal2",
"node_j": "NodeOutlet",
"roughness": 0.0000015,
"fittings": [],
"n": 1
},
{
"name": "BranchValve",
"category": 2,
"type": "BranchValve",
"dimType": "Circle",
"dimA": 0.01,
"dimB": null,
"length": 0.1,
"volume": 0.000031415926535897935,
"node_i": "NodeInlet1",
"node_j": "NodeInternal",
"roughness": 0.00000356,
"n": 1,
"fittings": []
},
{
"name": "BranchValve1",
"category": 2,
"type": "BranchValve",
"dimType": "Circle",
"dimA": 0.015,
"dimB": null,
"length": 0.1,
"volume": 0.00007068583470577034,
"node_i": "NodeInlet",
"node_j": "NodeInternal1",
"roughness": 0.0000015,
"n": 1,
"fittings": []
}
],
"machineries": [
{
"name": "MachineryNonDynamic1",
"category": 3,
"type": "MachineryNonDynamic",
"rotorShape": "SolidCylinder",
"rotorRadius": 0.0254,
"rotorLength": 0.305,
"rotorDensity": 8230,
"shaft": "Shaft1"
},
{
"name": "MachineryPump",
"category": 3,
"type": "MachineryPump",
"branch": "Branch",
"shaft": "Shaft",
"r1": 0.05,
"r2": 0.14,
"b2": 0.005,
"eRMS": 0.00000356,
"betaB2": 0.6981317007977318
},
{
"name": "MachineryTurbine",
"category": 3,
"type": "MachineryTurbine",
"branch": "BranchGas",
"shaft": "Shaft",
"rTip": 0.16,
"convergeBranch": "BranchGas1",
"statorO": 0.0025,
"statorA": 0.0065,
"rotorH": 0.01,
"beta": 1.1868238913561442,
"rotorC": 0.03,
"admissionRatio": 0.95,
"alpha": 1.2217304763960306,
"omega": 1400,
"gamma": 1.4,
"t": 1100,
"rS": 2400,
"rotorZ": 55,
"statorZ": 42
},
{
"name": "MachineryPump1",
"category": 3,
"type": "MachineryPump",
"branch": "Branch2",
"shaft": "Shaft3",
"betaB2": 0.6981317007977318,
"r1": 0.04,
"r2": 0.12,
"b2": 0.001,
"eRMS": 0.00000356
}
],
"transmissions": [
{
"name": "Shaft",
"category": 4,
"type": "Shaft",
"rotorShape": "SolidCylinder",
"rotorRadius": 0.0254,
"rotorLength": 0.5,
"rotorDensity": 8230,
"gears": [
"Gear2"
]
},
{
"name": "Shaft1",
"category": 4,
"type": "Shaft",
"rotorShape": "SolidCylinder",
"rotorRadius": 0.0254,
"rotorLength": 0.305,
"rotorDensity": 8230,
"gears": [
"Gear"
]
},
{
"name": "Gear",
"category": 4,
"type": "Gear",
"rotorShape": "SolidCylinder",
"rotorRadius": 0.04,
"rotorLength": 0.0254,
"rotorDensity": 8230,
"gears": [
"Gear1"
],
"teeth": 16,
"module": 5
},
{
"name": "Gear1",
"category": 4,
"type": "Gear",
"rotorShape": "SolidCylinder",
"rotorRadius": 0.08,
"rotorLength": 0.0254,
"rotorDensity": 8230,
"gears": [],
"teeth": 32,
"module": 5
},
{
"name": "Shaft2",
"category": 4,
"type": "Shaft",
"rotorShape": "SolidCylinder",
"rotorRadius": 0.0254,
"rotorLength": 0.305,
"rotorDensity": 8230,
"gears": [
"Gear1"
]
},
{
"name": "Gear2",
"category": 4,
"type": "Gear",
"rotorShape": "SolidCylinder",
"rotorRadius": 0.15,
"rotorLength": 0.02,
"rotorDensity": 7800,
"gears": [],
"teeth": 60,
"module": 5
},
{
"name": "Gear3",
"category": 4,
"type": "Gear",
"rotorShape": "SolidCylinder",
"rotorRadius": 0.105,
"rotorLength": 0.02,
"rotorDensity": 7800,
"gears": [
"Gear2"
],
"teeth": 42,
"module": 5
},
{
"name": "Shaft3",
"category": 4,
"type": "Shaft",
"rotorShape": "SolidCylinder",
"rotorRadius": 0.02,
"rotorLength": 0.5,
"rotorDensity": 7800,
"gears": [
"Gear3"
]
}
],
"solids": [],
"control_parameters": [
{
"name": "ControlParameter1",
"category": 6,
"type": "ControlParameter",
"component": "MachineryNonDynamic1",
"component_category": 3,
"component_port": "c",
"value": 1
},
{
"name": "ControlParameter2",
"category": 6,
"type": "ControlParameter",
"component": "NodeInlet",
"component_category": 1,
"component_port": "cp",
"value": 300000
},
{
"name": "GasPressureControl",
"category": 6,
"type": "ControlParameter",
"component": "NodeGasInlet",
"component_category": 1,
"component_port": "cp",
"value": 10001000
},
{
"name": "OfRatioControl",
"category": 6,
"type": "ControlParameter",
"component": "NodeGasInlet",
"component_category": 1,
"component_port": "cr",
"value": 1
},
{
"name": "TurbineExitPressureControl",
"category": 6,
"type": "ControlParameter",
"component": "NodeOutlet1",
"component_category": 1,
"component_port": "cp",
"value": 100000
},
{
"name": "ControlParameter",
"category": 6,
"type": "ControlParameter",
"component": "NodeInlet1",
"component_category": 1,
"component_port": "cp",
"value": 300000
},
{
"name": "ControlParameterTransition",
"category": 6,
"type": "ControlParameterTransition",
"component": "BranchValve1",
"component_category": 2,
"component_port": "c",
"startValue": 0.1,
"endValue": 0.8,
"midpoint": 0.5,
"width": 0.1,
"value": null
},
{
"name": "ControlParameterTransition1",
"category": 6,
"type": "ControlParameterTransition",
"component": "BranchValve",
"component_category": 2,
"component_port": "c",
"startValue": 0.33,
"endValue": 0.66,
"midpoint": 0.35,
"width": 0.05,
"value": null
},
{
"name": "ControlParameter4",
"category": 6,
"type": "ControlParameter",
"component": "NodeOutlet",
"component_category": 1,
"component_port": "cp",
"value": 100000
}
]
},
"modelPositions": {
"nodes": {
"NodeInlet": {
"x": -340,
"y": -230
},
"NodeGasInlet": {
"x": 250,
"y": 280
},
"NodeOutlet1": {
"x": 220,
"y": 630
},
"NodeGasInternal": {
"x": 220,
"y": 430
},
"NodeInlet1": {
"x": -710,
"y": -230
},
"LOXp": {
"x": -340,
"y": 150
},
"RP1p": {
"x": -710,
"y": 150
},
"NodeGasGenerator": {
"x": -520,
"y": 370
},
"NodeOutlet": {
"x": -560,
"y": 910
},
"NodeGasInternal1": {
"x": -520,
"y": 550
},
"NodeGasInternal2": {
"x": -520,
"y": 730
},
"NodeInternal": {
"x": -710,
"y": -30
},
"NodeInternal1": {
"x": -340,
"y": -30
}
},
"branches": {
"Branch": {
"x": -340,
"y": 60
},
"BranchGas": {
"x": 260,
"y": 510
},
"BranchGas1": {
"x": 200,
"y": 350
},
"Branch2": {
"x": -710,
"y": 60
},
"LOX Injector": {
"x": -340,
"y": 240
},
"RP1 Injector": {
"x": -710,
"y": 240
},
"Chamber": {
"x": -520,
"y": 460
},
"BranchGas3": {
"x": -520,
"y": 820
},
"Throat": {
"x": -520,
"y": 640
},
"BranchValve": {
"x": -710,
"y": -120
},
"BranchValve1": {
"x": -340,
"y": -120
}
},
"machineries": {
"MachineryNonDynamic1": {
"x": 520,
"y": 60
},
"MachineryPump": {
"x": -150,
"y": 10
},
"MachineryTurbine": {
"x": 480,
"y": 350
},
"MachineryPump1": {
"x": -520,
"y": 10
}
},
"transmissions": {
"Shaft": {
"x": 260,
"y": 120
},
"Shaft1": {
"x": 830,
"y": 200
},
"Gear": {
"x": 710,
"y": 110
},
"Gear1": {
"x": 1050,
"y": 110
},
"Shaft2": {
"x": 1180,
"y": 200
},
"Gear2": {
"x": 240,
"y": -20
},
"Gear3": {
"x": 40,
"y": -20
},
"Shaft3": {
"x": 40,
"y": -70
}
},
"solids": {},
"control_parameters": {
"ControlParameter1": {
"x": 530,
"y": -70
},
"ControlParameter2": {
"x": -500,
"y": -290
},
"OfRatioControl": {
"x": 90,
"y": 200
},
"GasPressureControl": {
"x": 90,
"y": 240
},
"TurbineExitPressureControl": {
"x": -10,
"y": 590
},
"ControlParameter": {
"x": -870,
"y": -290
},
"ControlParameterTransition": {
"x": -530,
"y": -170
},
"ControlParameterTransition1": {
"x": -900,
"y": -170
},
"ControlParameter4": {
"x": -800,
"y": 910
}
}
},
"charts": {
"currentResponsiveBreakpoint": "sm",
"currentNumCols": 6,
"layouts": {
"lg": [
{
"i": "Chart 1",
"x": 0,
"y": 0,
"w": 4,
"h": 3,
"minW": 2,
"minH": 2
},
{
"i": "Chart 2",
"x": 4,
"y": 0,
"w": 2,
"h": 3,
"minW": 2,
"minH": 2
},
{
"i": "Chart 3",
"x": 6,
"y": 0,
"w": 2,
"h": 3,
"minW": 2,
"minH": 2
},
{
"i": "Thrust - BranchGas3",
"x": 8,
"y": 0,
"w": 2,
"h": 4,
"minW": 2,
"minH": 2
},
{
"i": "Chart 4",
"x": 10,
"y": 0,
"w": 2,
"h": 3,
"minW": 2,
"minH": 2
}
],
"md": [
{
"i": "Chart 1",
"x": 0,
"y": 0,
"w": 2,
"h": 2,
"minW": 2,
"minH": 2
},
{
"i": "Chart 2",
"x": 2,
"y": 9999,
"w": 2,
"h": 2,
"minW": 2,
"minH": 2
},
{
"i": "Chart 3",
"x": 2,
"y": 0,
"w": 2,
"h": 2,
"minW": 2,
"minH": 2
},
{
"i": "Thrust - BranchGas3",
"x": 4,
"y": 0,
"w": 2,
"h": 2,
"minW": 2,
"minH": 2
},
{
"i": "Chart 4",
"x": 6,
"y": 0,
"w": 2,
"h": 2,
"minW": 2,
"minH": 2
}
],
"sm": [
{
"i": "Chart 1",
"x": 0,
"y": 0,
"w": 4,
"h": 3,
"minW": 2,
"minH": 2
},
{
"i": "Chart 2",
"x": 4,
"y": 0,
"w": 2,
"h": 2,
"minW": 2,
"minH": 2
},
{
"i": "Chart 3",
"x": 4,
"y": 2,
"w": 2,
"h": 2,
"minW": 2,
"minH": 2
},
{
"i": "Thrust - BranchGas3",
"x": 0,
"y": 3,
"w": 2,
"h": 2,
"minW": 2,
"minH": 2
},
{
"i": "Chart 4",
"x": 2,
"y": 3,
"w": 2,
"h": 2,
"minW": 2,
"minH": 2
}
],
"xs": [
{
"i": "Chart 1",
"x": 0,
"y": 0,
"w": 4,
"h": 2,
"minW": 2,
"minH": 2
},
{
"i": "Chart 2",
"x": 2,
"y": 9999,
"w": 2,
"h": 2,
"minW": 2,
"minH": 2
},
{
"i": "Chart 3",
"x": 0,
"y": 2,
"w": 2,
"h": 2,
"minW": 2,
"minH": 2
},
{
"i": "Thrust - BranchGas3",
"x": 2,
"y": 2,
"w": 2,
"h": 2,
"minW": 2,
"minH": 2
},
{
"i": "Chart 4",
"x": 0,
"y": 4,
"w": 2,
"h": 2,
"minW": 2,
"minH": 2
}
],
"xxs": [
{
"i": "Chart 1",
"x": 0,
"y": 9999,
"w": 2,
"h": 2,
"minW": 2,
"minH": 2
},
{
"i": "Chart 2",
"x": 0,
"y": 9999,
"w": 2,
"h": 2,
"minW": 2,
"minH": 2
},
{
"i": "Chart 3",
"x": 0,
"y": 0,
"w": 2,
"h": 2,
"minW": 2,
"minH": 2
},
{
"i": "Thrust - BranchGas3",
"x": 0,
"y": 2,
"w": 2,
"h": 2,
"minW": 2,
"minH": 2
},
{
"i": "Chart 4",
"x": 0,
"y": 4,
"w": 2,
"h": 2,
"minW": 2,
"minH": 2
}
]
},
"chartInfos": {
"Chart 1": {
"title": "Chart 1",
"axes": {
"ṁ": {
"label": "ṁ",
"variableName": "ṁ",
"components": [
{
"name": "Branch",
"category": 2,
"type": "Branch"
},
{
"name": "BranchGas",
"category": 2,
"type": "BranchGas"
},
{
"name": "Branch2",
"category": 2,
"type": "Branch"
}
]
},
"%": {
"label": "%",
"variableName": "%",
"components": [
{
"name": "BranchValve",
"category": 2,
"type": "BranchValve"
},
{
"name": "BranchValve1",
"category": 2,
"type": "BranchValve"
}
]
}
},
"isSelected": false
},
"Chart 2": {
"title": "Chart 2",
"axes": {
"P": {
"label": "P",
"variableName": "P",
"components": [
{
"name": "LOXp",
"category": 1,
"type": "NodeInternal"
},
{
"name": "RP1p",
"category": 1,
"type": "NodeInternal"
}
]
}
},
"isSelected": false
},
"Chart 3": {
"title": "Chart 3",
"axes": {
"P₀": {
"label": "P₀",
"variableName": "P₀",
"components": [
{
"name": "Chamber",
"category": 2,
"type": "BranchGas"
}
]
},
"T₀": {
"label": "T₀",
"variableName": "T₀",
"components": [
{
"name": "Chamber",
"category": 2,
"type": "BranchGas"
}
]
},
"ṁ": {
"label": "ṁ",
"variableName": "ṁ",
"components": [
{
"name": "Throat",
"category": 2,
"type": "BranchGas"
}
]
}
},
"isSelected": false
},
"Chart 4": {
"title": "Chart 4",
"axes": {
"M": {
"label": "M",
"variableName": "M",
"components": [
{
"name": "Throat",
"category": 2,
"type": "BranchGas"
},
{
"name": "BranchGas3",
"category": 2,
"type": "BranchGas"
}
]
}
},
"isSelected": true
}
},
"samplers": {
"Thrust - BranchGas3": {
"title": "Thrust - BranchGas3",
"branchName": "BranchGas3"
}
}
},
"simulation": {
"simulationState": "ended",
"currentTime": 0,
"maxTime": 1,
"signature": {}
},
"version": "0.3.0"
}
